Compatible with:

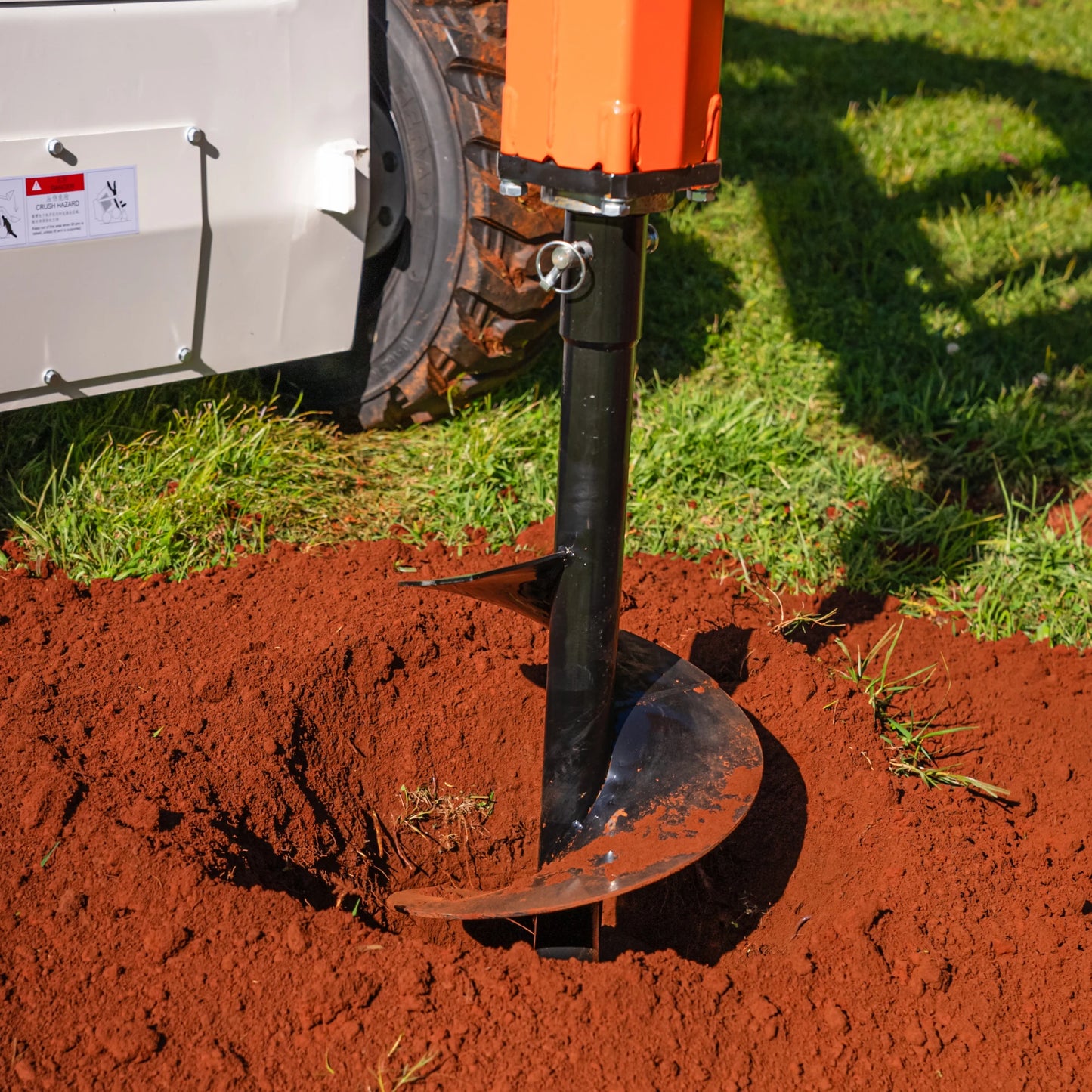

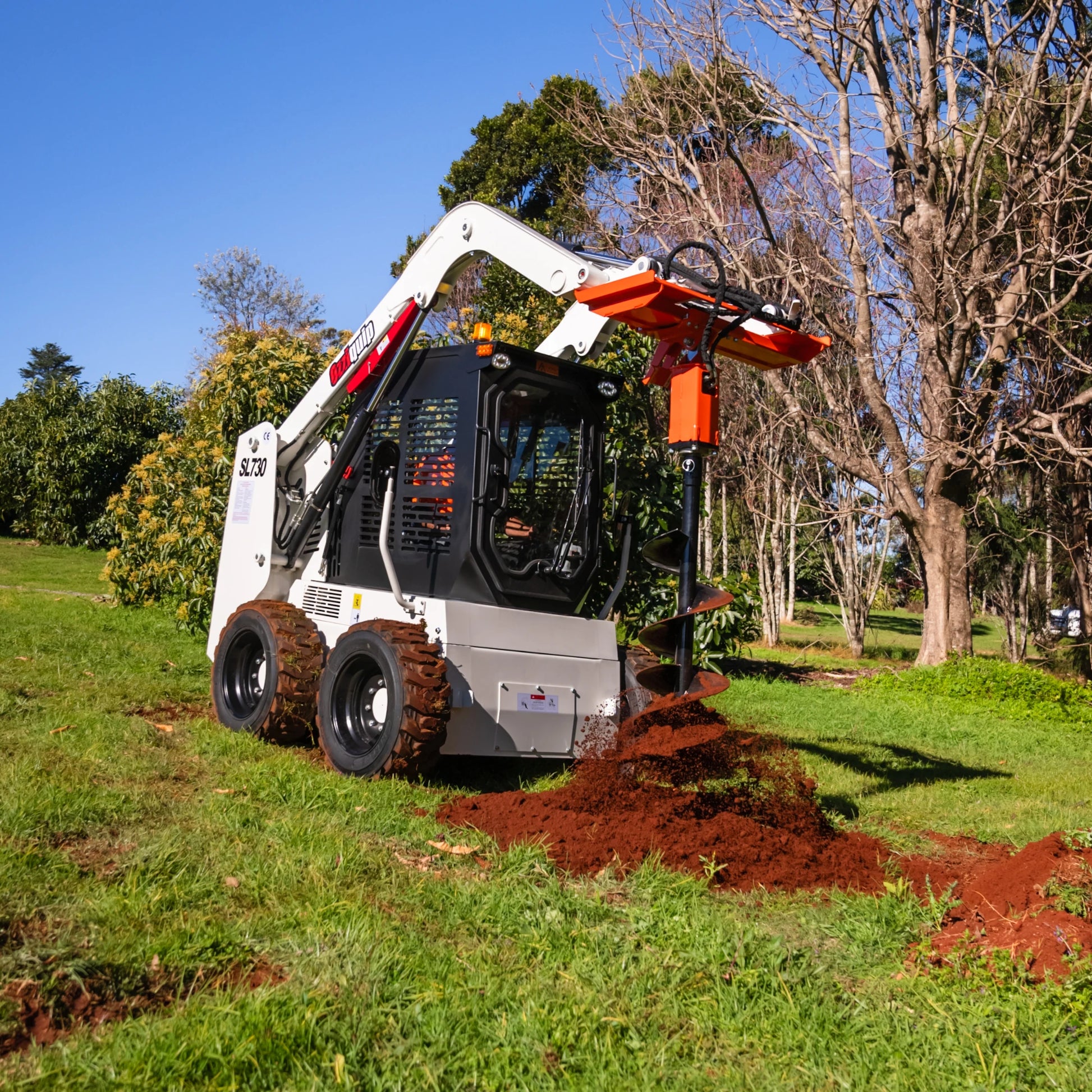

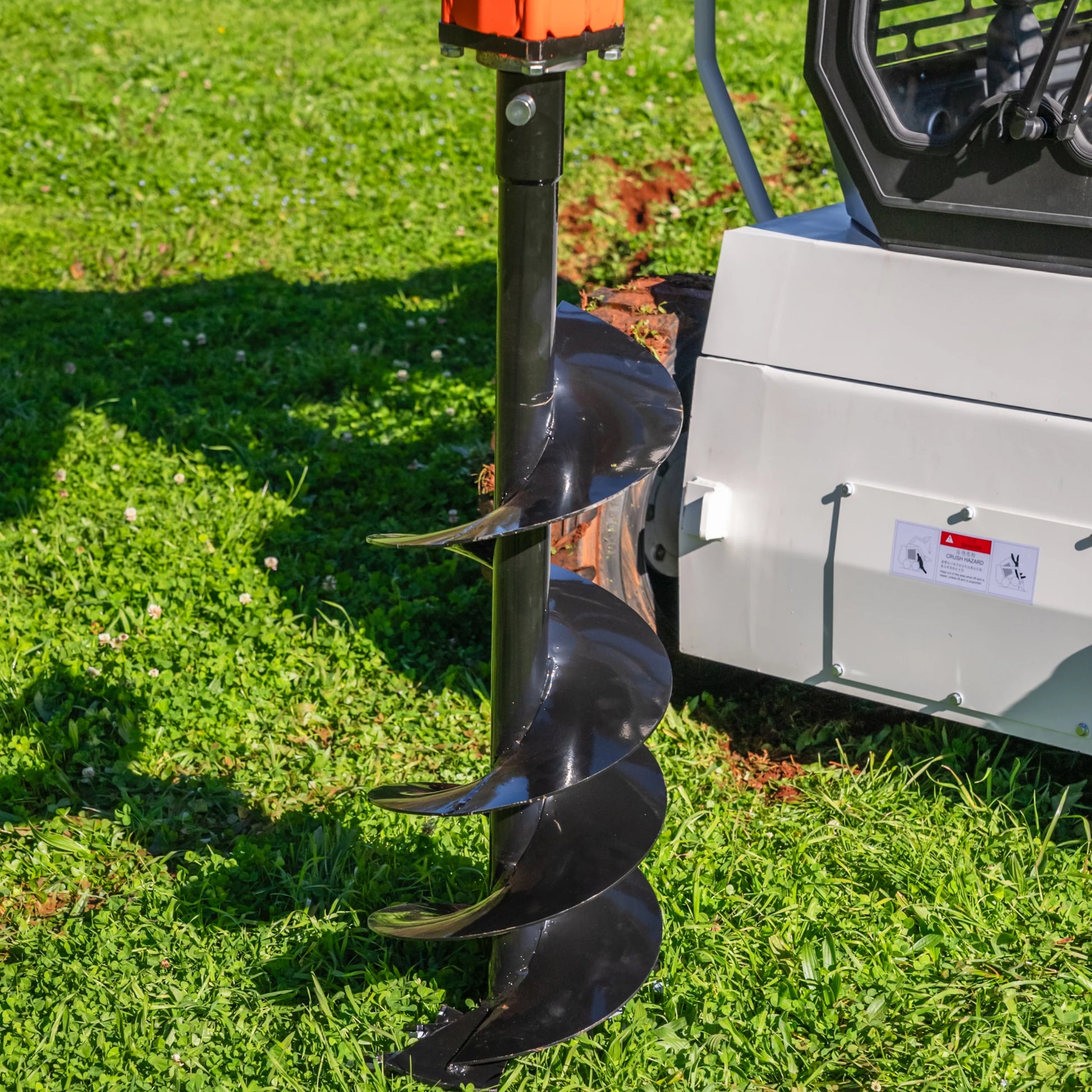

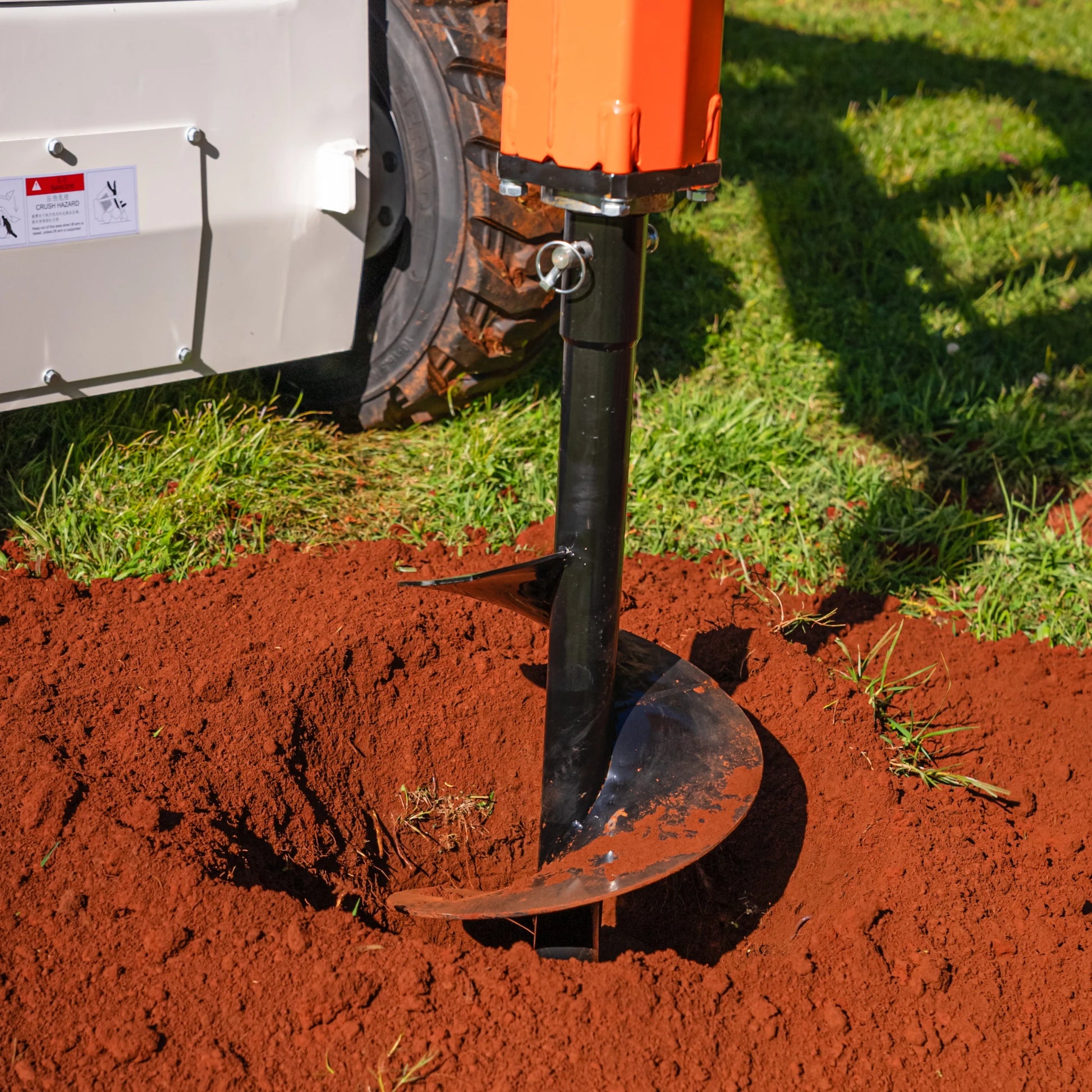

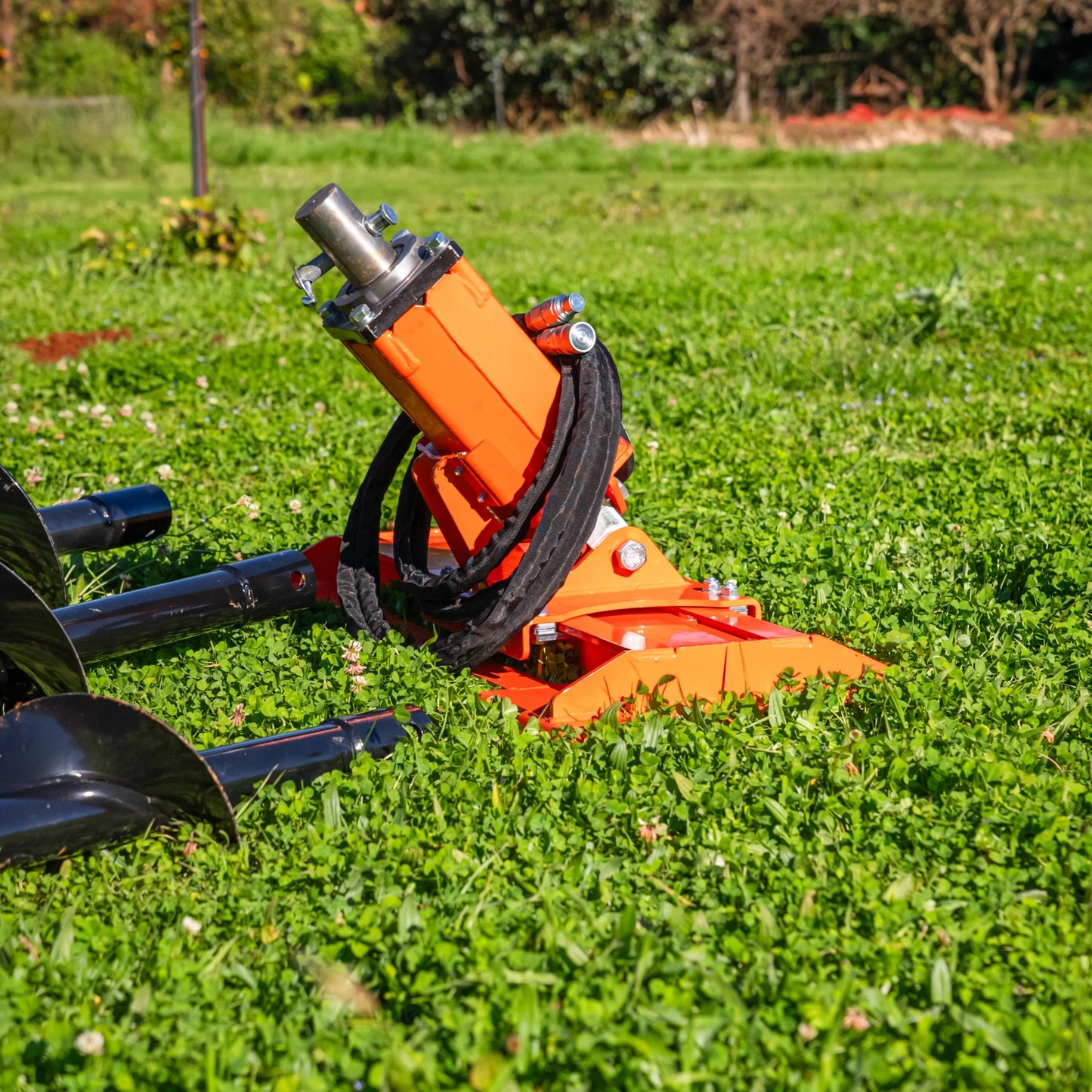

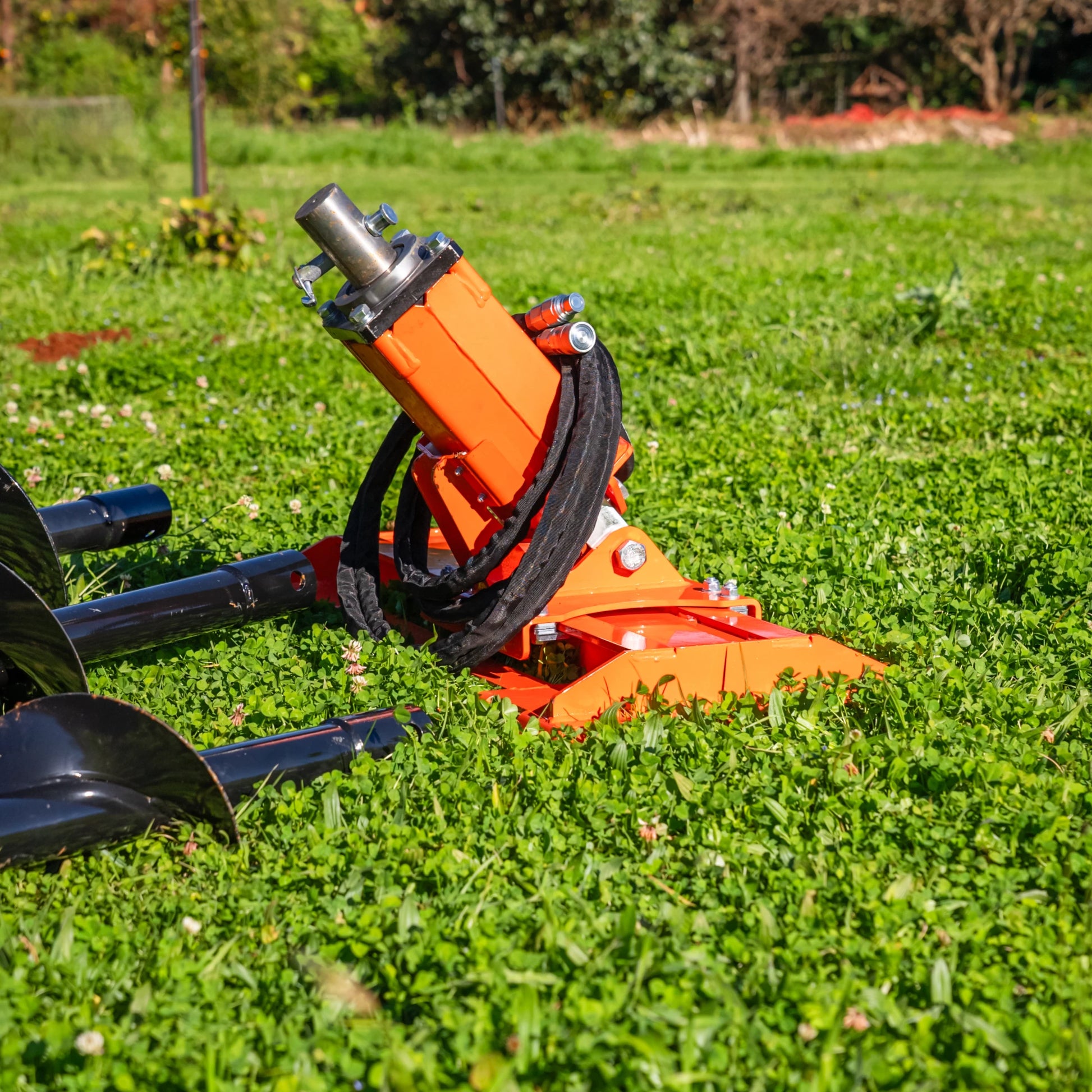

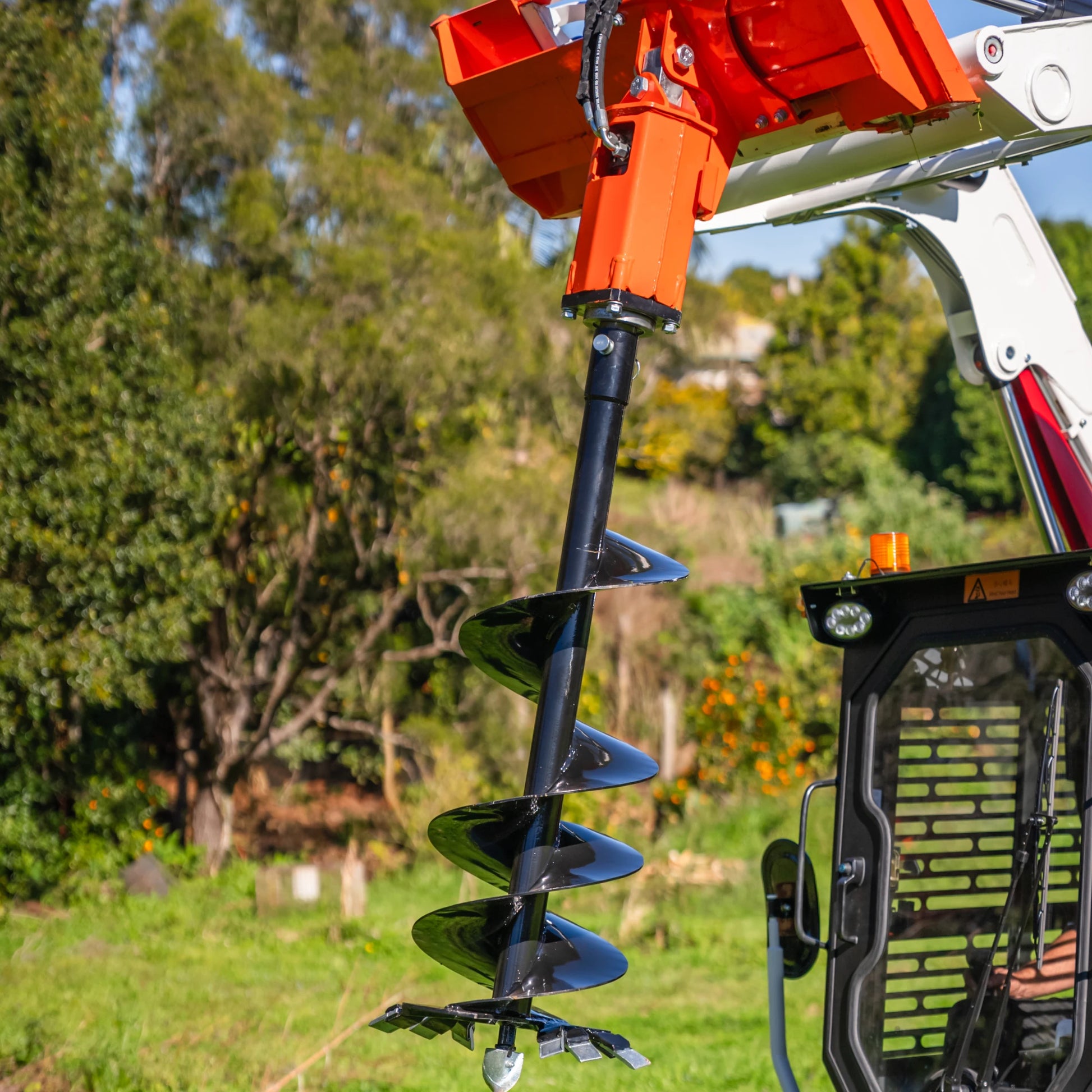

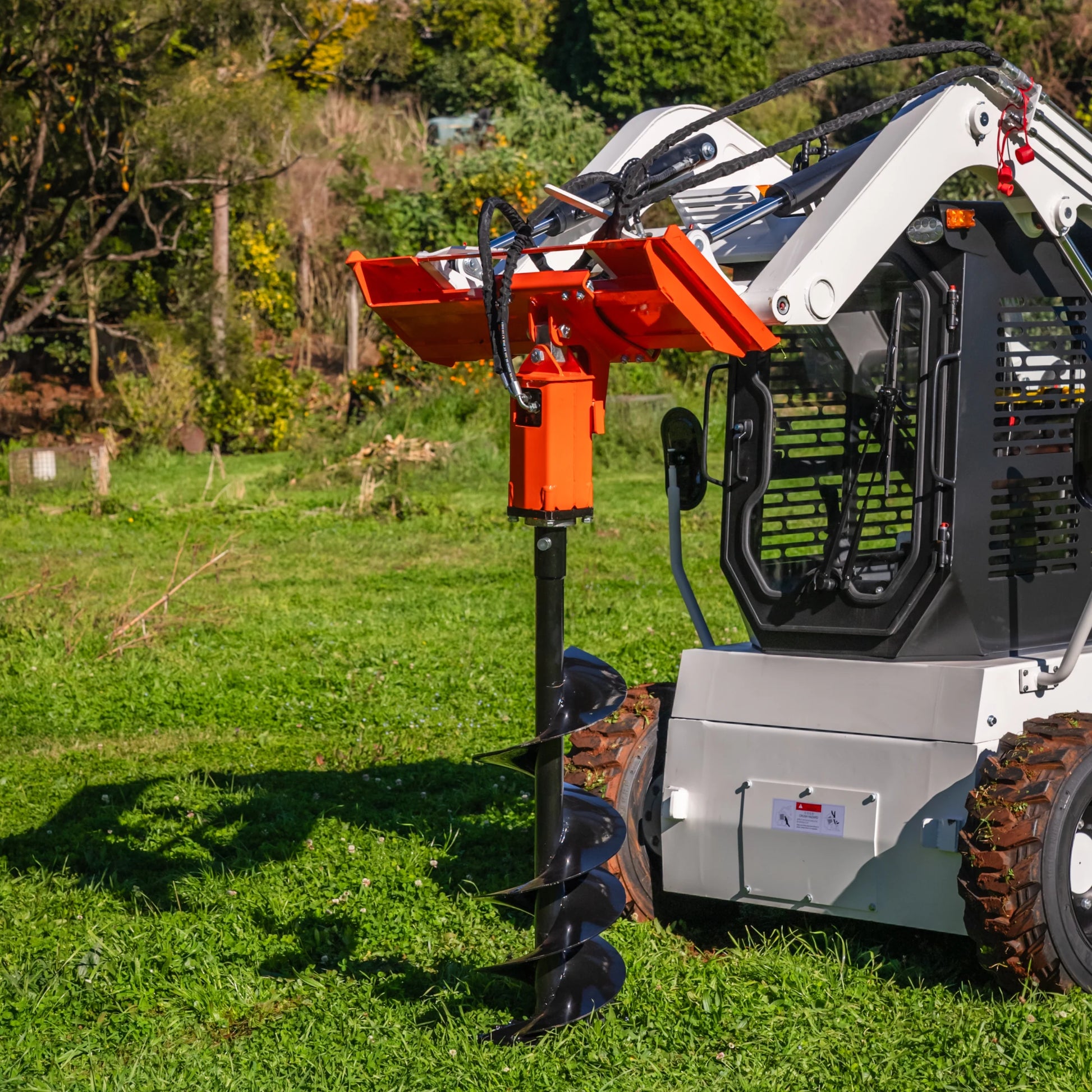

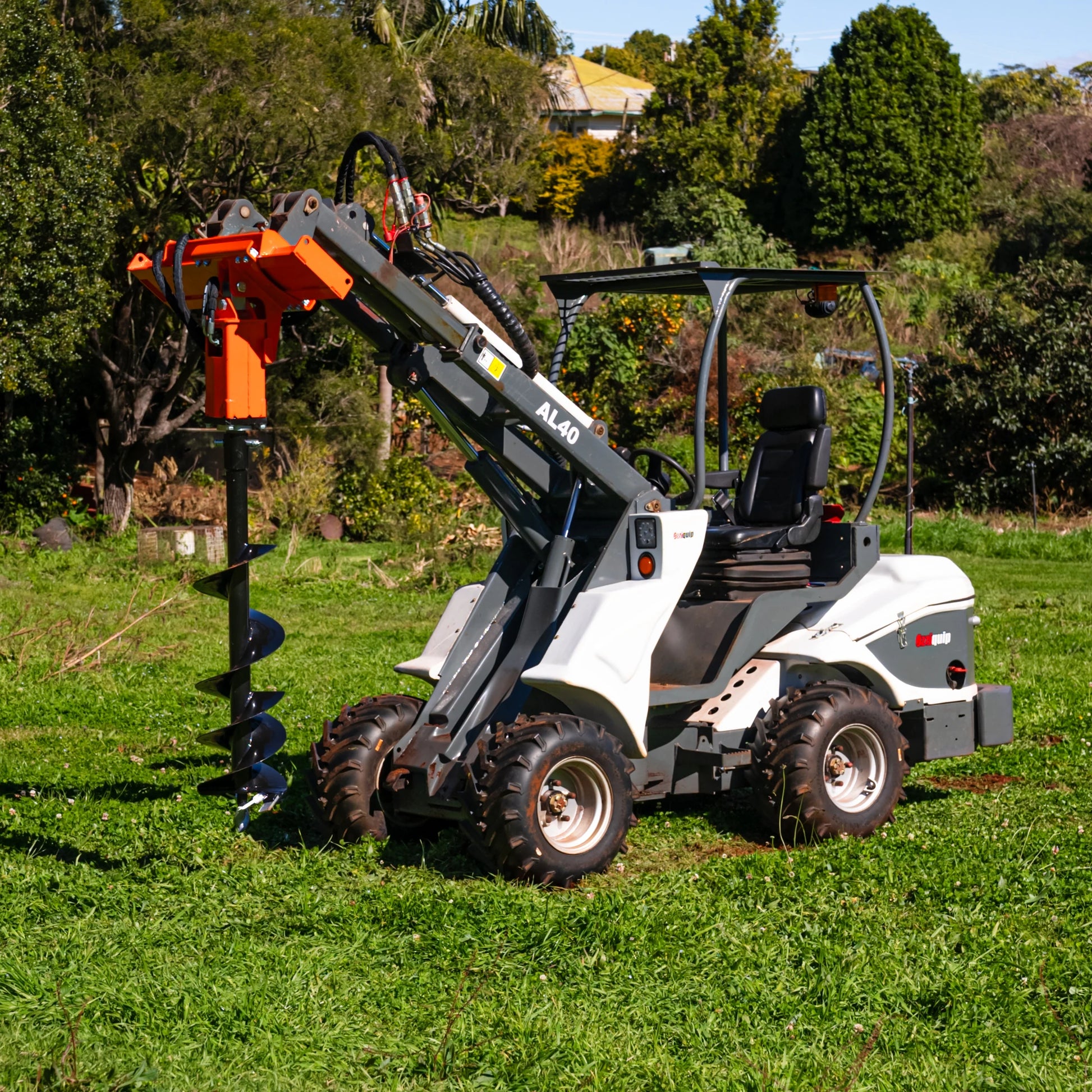

The Ozziquip Auger Drive is engineered to suit a wide range of hydraulic loaders, thanks to its adaptable mounting system and interchangeable adaptor plates. Built tough with a planetary gearbox and a 65mm output shaft, this auger drive delivers exceptional torque—making it ideal for even the most demanding drilling tasks.

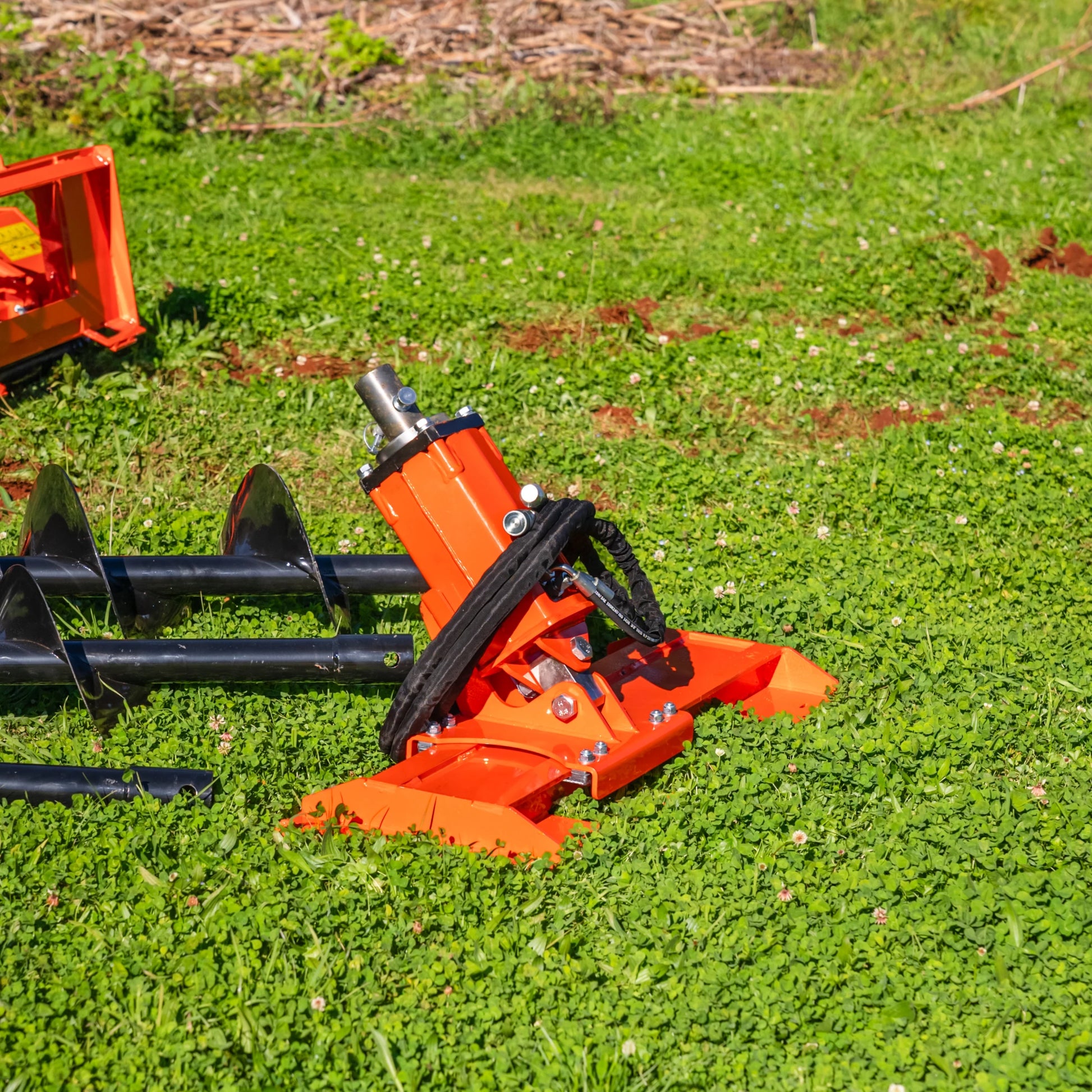

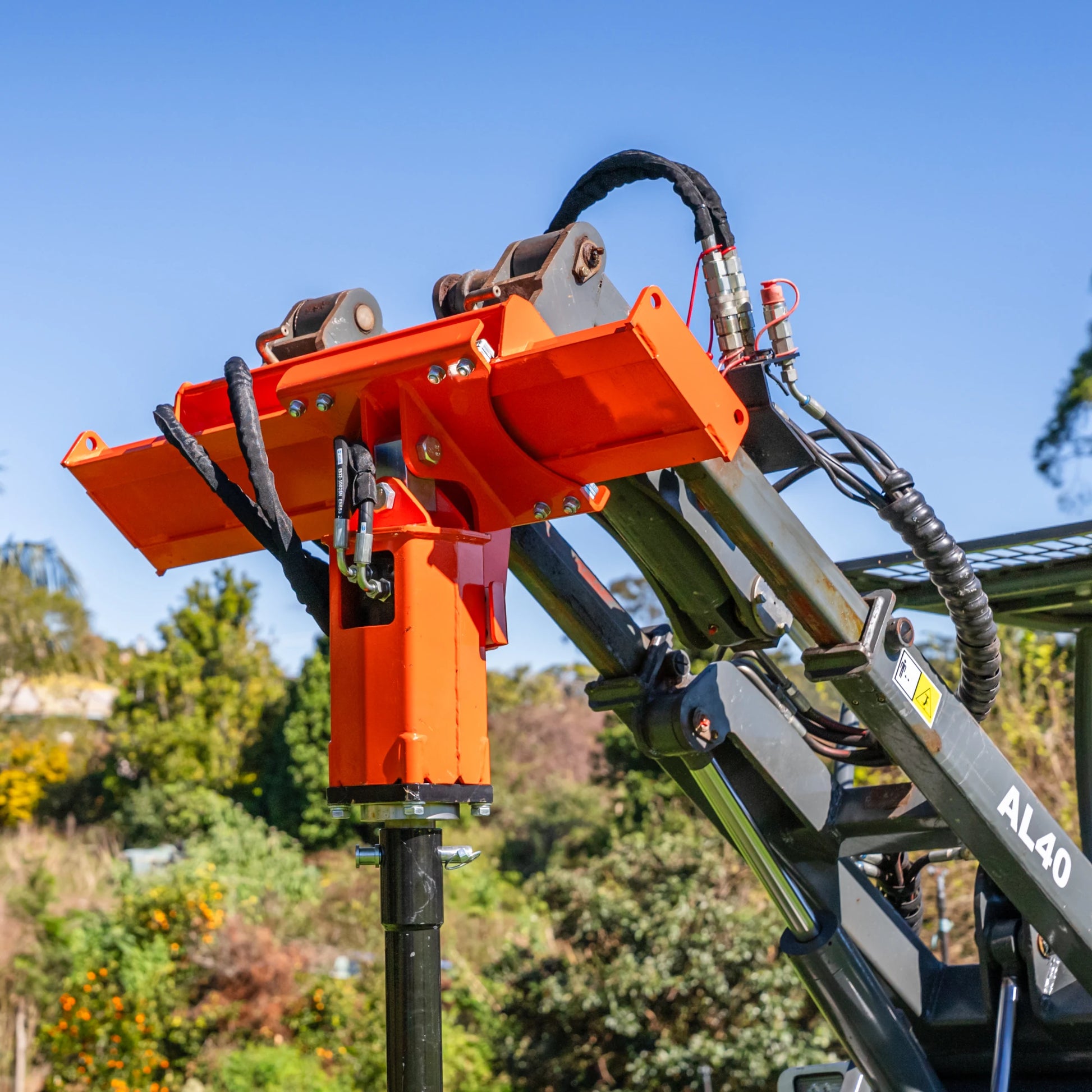

Designed for precision and stability, it features an offsettable sliding hitch plate and 4-way swing movement, allowing for straight and accurate hole placement, even on uneven terrain.

Package Inclusions:

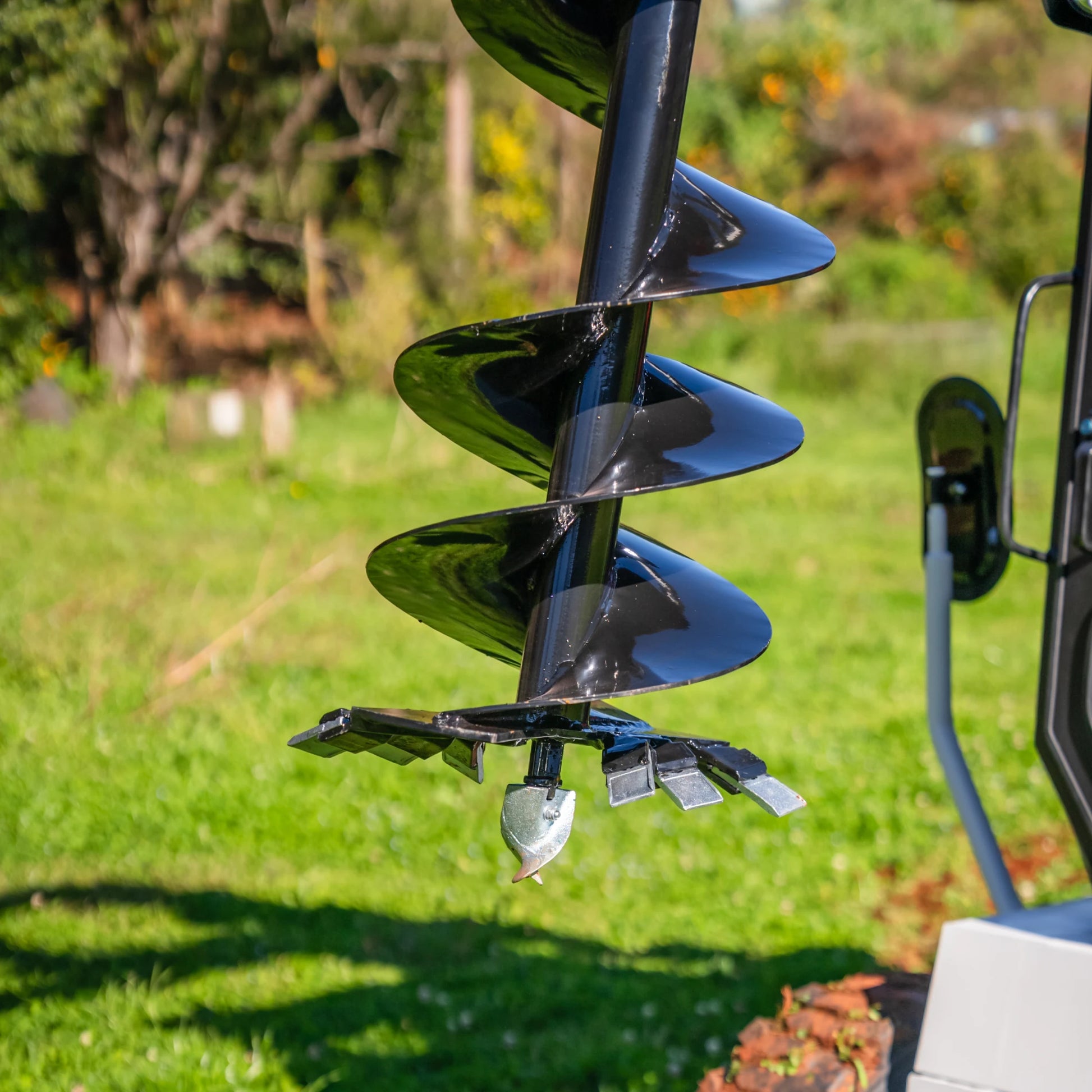

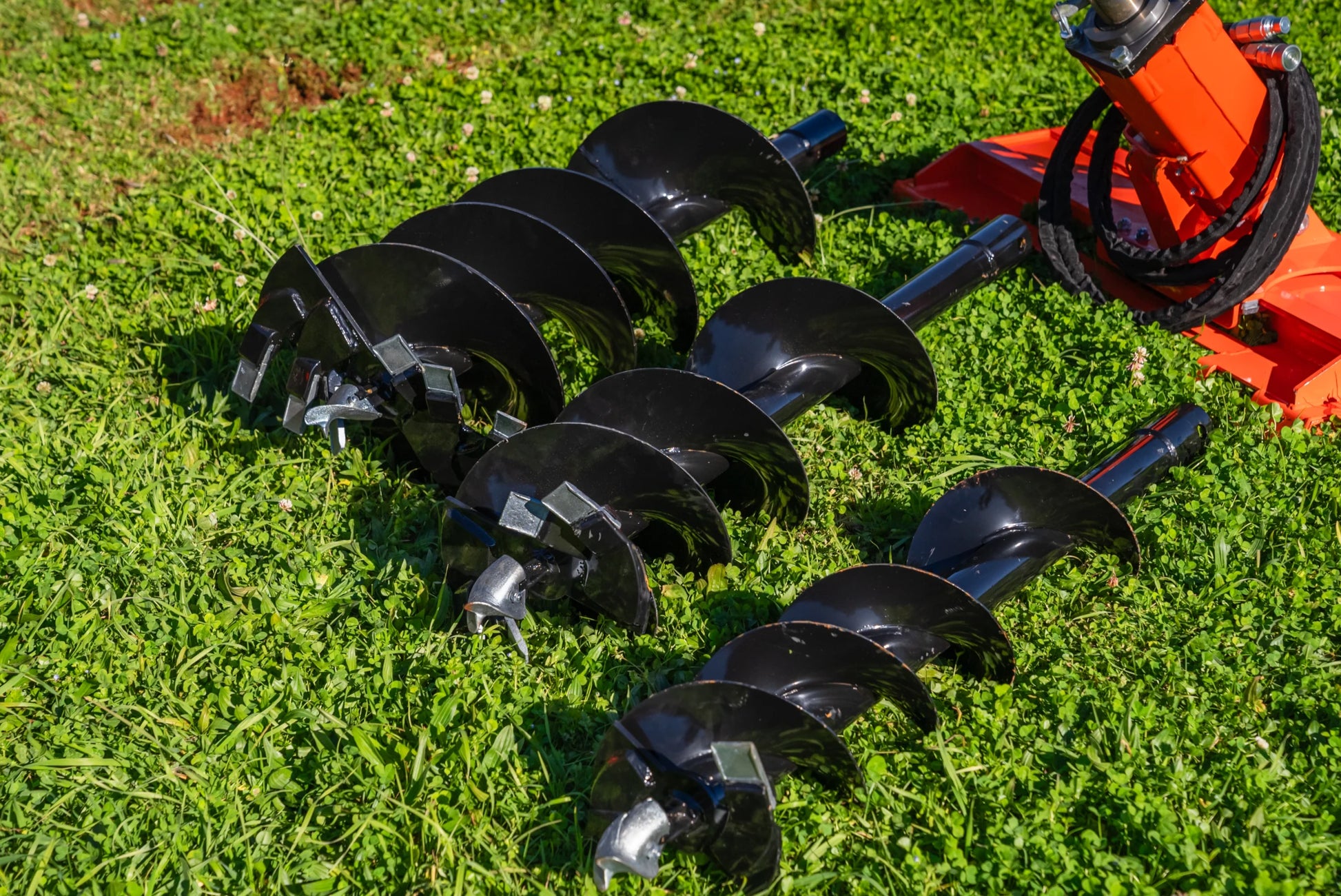

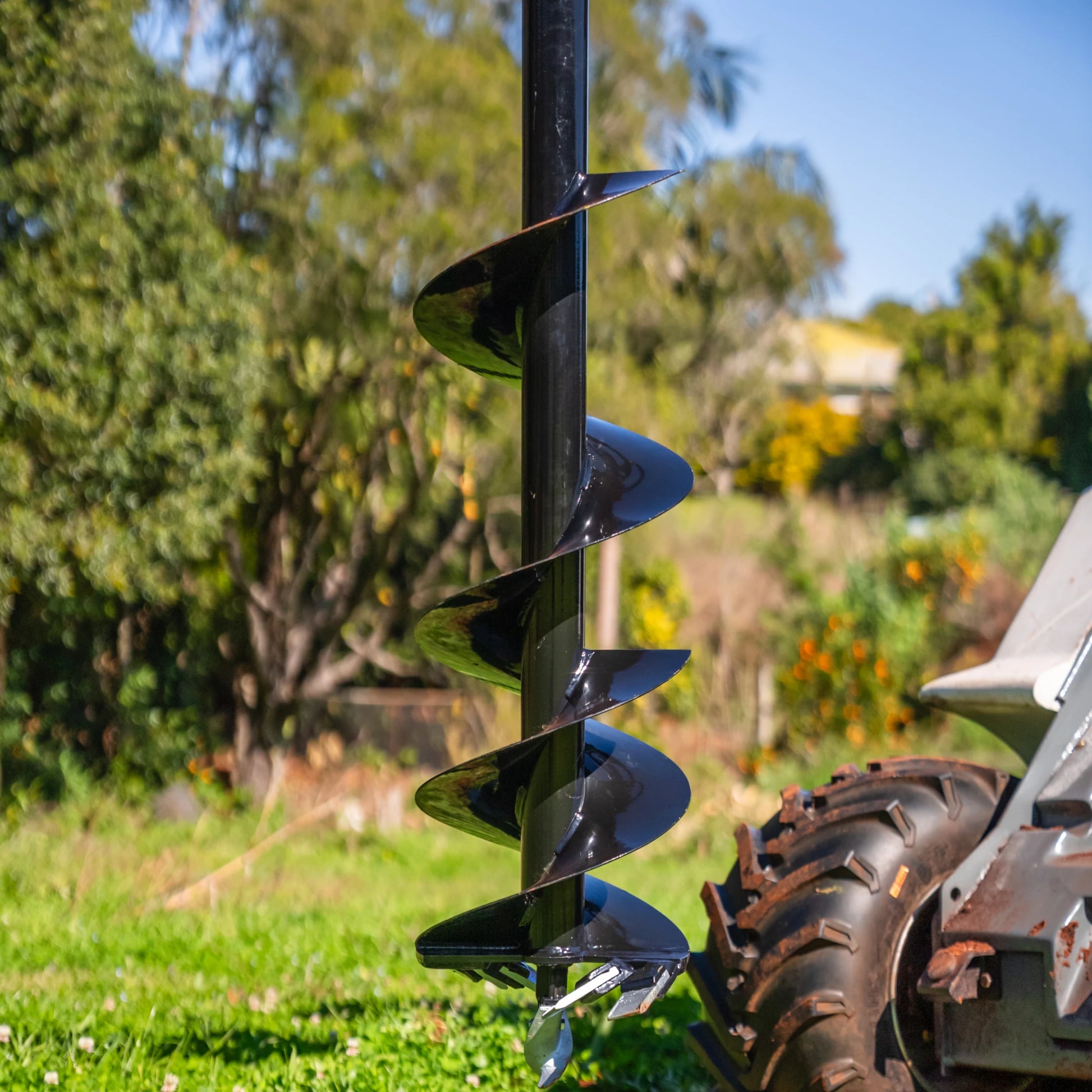

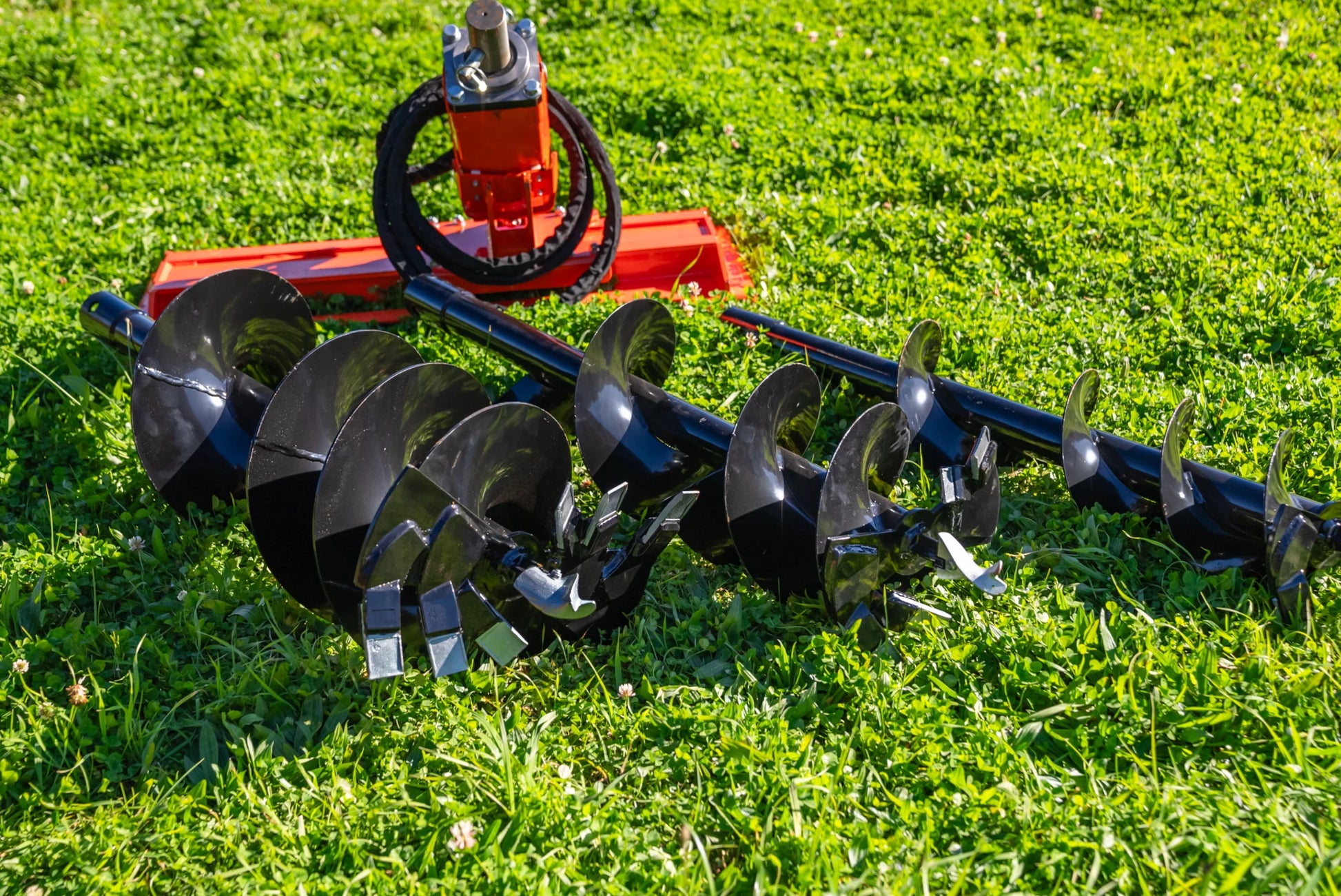

• 3 Augers: 8”, 12” and 16” diameter
• Planetary gearbox with high torque output
• 65mm solid shaft for strength and durability
• Adaptable hitch plate system for various machines

Features Include:

• Weight:  103kg
• LxWxH:  2070mm × 1060mm × 440mm
• Depth of Auger: 1300 mm
• RPM: 55 - 65 rpm
• Max Flow of Oil: 70L /min
• Power: 25 kW
• Max Torque: 1770 NM
• Max Pressure: 19 MPa
